Calibration data in wells are not inputs for the model ! They are used to control the accuracy of the model once you run the simulation. Let’s take a look at the temperature.

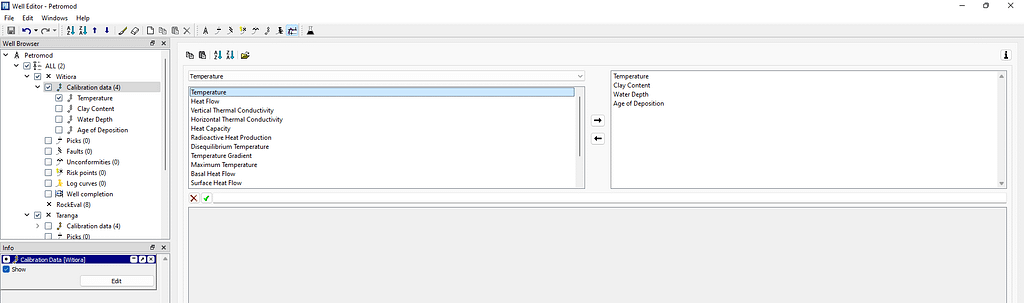

In Well Editor, click on « calibration data » and then select « Temperature in the menu. Click on the right black arrow to send it to the right. You can add many other data to add in this column.

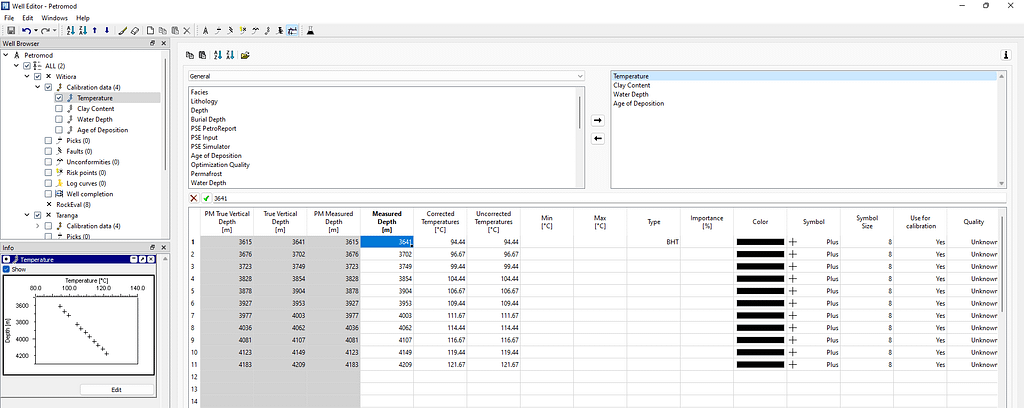

Click on « Temperature » in the list and a blank table appears. So, fill in the form. Two column must be completed: Measured Depth and values. Keep in mind that Values must be set in Celsius. The conversion from Fahrenheit is Tc=(Tf-32)*5/9
If you click on temperature in the left pane, the graph appears in a small window.

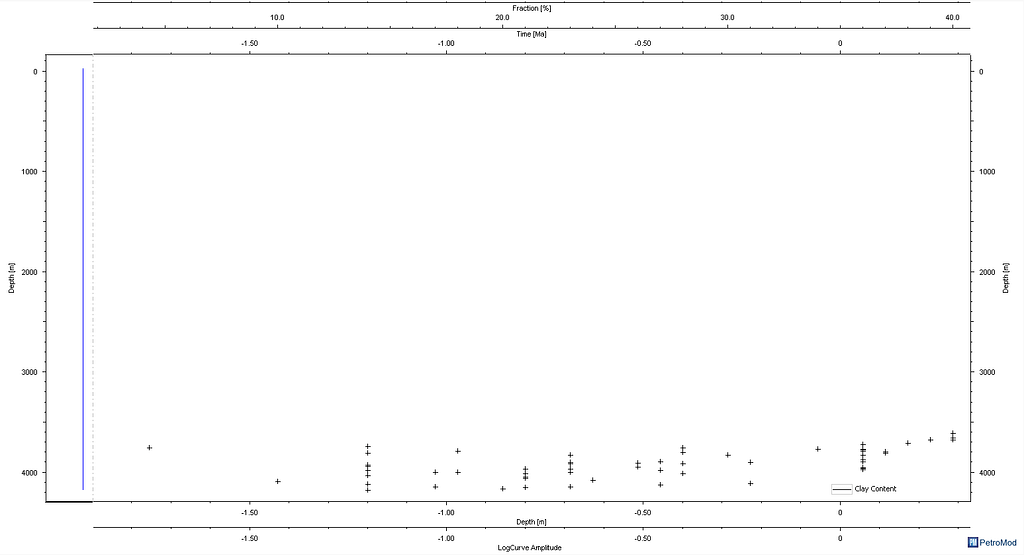

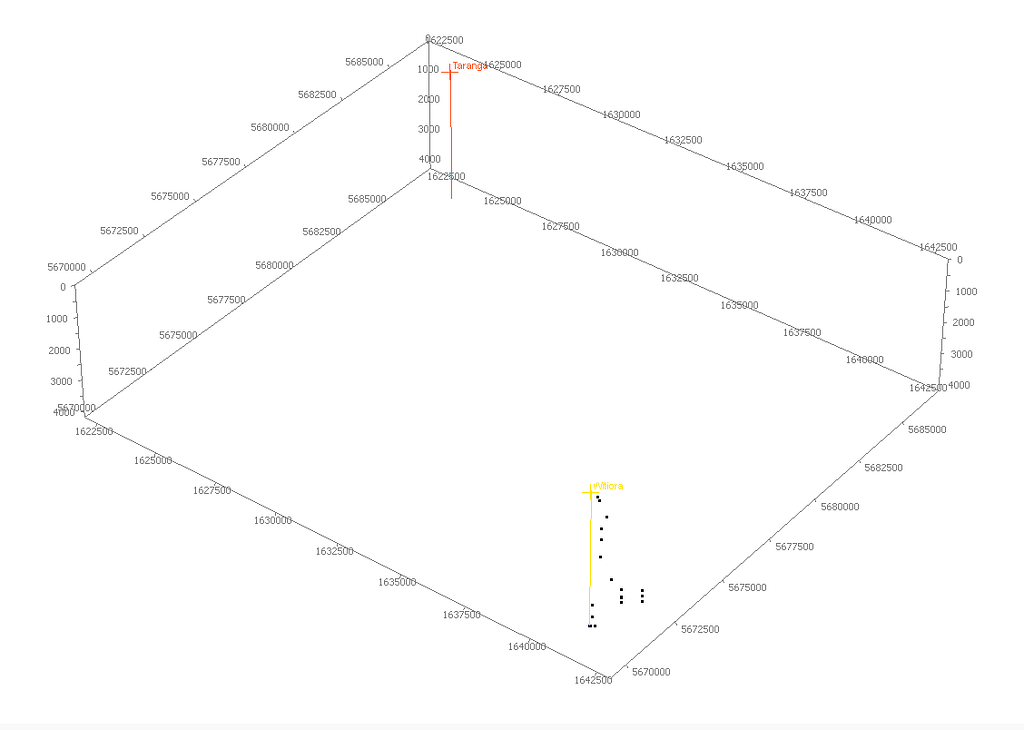

You can do it for other parameters, such as Rock-Eval analysis, clay content etc… You can represent the data in a 1D or 3D window
It’s done !
